- Clone type
- Vector
- Applications
-
Molecular biology
- Product format
- Frozen
- Shipping information
- Escherichia coli DH5α containing the plasmid in glycerol stock
Documentation
ATCC determines the biosafety level of a material based on our risk assessment as guided by the current edition of Biosafety in Microbiological and Biomedical Laboratories (BMBL), U.S. Department of Health and Human Services. It is your responsibility to understand the hazards associated with the material per your organization’s policies and procedures as well as any other applicable regulations as enforced by your local or national agencies.
Detailed product information
General
- Specific applications
-
expression vectorproduces protein arabinose regulatorvector containing primer sites useful for sequencingvector with low copy number
Characteristics
- Comments
-
Restriction digests of the clone give the following sizes (kb): AvaI--3.1, 1.9, 1.3; BamHI--6.1; PstI--5.0;1.2.Cultures should be grown in minimal media for more reproducible induction of expression. Expression is induced in glycerol-containing media by addition of arabinose. Expression is repressed by addition of glucose or other catabolites.One of several tightly controlled expression vectors (ATCC 87393-87402) regulated by the arabinose operon. The vectors differ in replicon, antibiotic resistance marker, multiple cloning site and mechanism of initiation of translation.The following primers can be used for sequencing of cloned inserts: 5' primer (27 - 8 bp upstream of the NheI site) 5'-CTGTTTCTCCATACCCGTT-3'; and one of two 3' primers: 3' primer 1 (2 - 19 bp downstream of the HindIII site) 5'-CTCATCCGCCAAAACAG-3';3' primer 2 (17 - 33 bp downstream of the HindIII site) 5'-GGCTGAAAATCTTCTCT-3'.Plasmid copy number is low due to the p15A replicon. This vector can be used when reduced gene expression is desirable.Plasmid is compatible with pBR-derived plasmids and may be used for coexpression of cloned inserts.
- Mycoplasma contamination
- Not detected

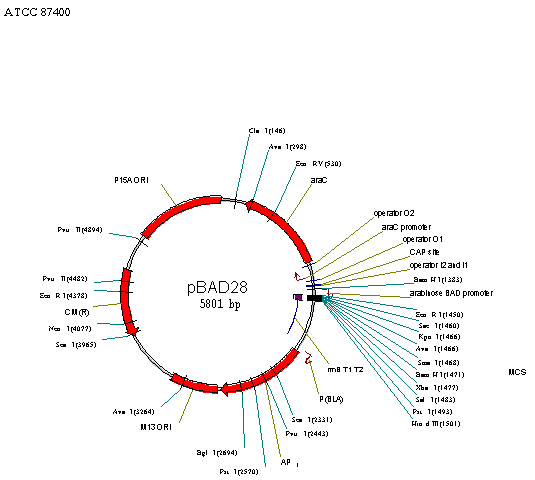

Vector information
- Construction
- pBAD18, pACYC184
- Vector information
-
other: CAP site
- Markers
-
araC; cmlR; ampR
- MCS
- NheI...HindIII
- Operator
-
I2 + I1; O1; O2
- Polylinker sites
-
NheI; EcoRI; SacI; KpnI; SmaI; BamHI; XbaI; SalI; AccI; PstI; SphI; HindIII
- Regulator
- araC
- Replicon
- M13; p15A
- Terminator
- rrnB T1 + T2
- Transcription terminator
-
rrnB T1; rrnB T2
Insert information
- Target gene
-
arabinose regulator
Handling information
- Medium
- Temperature
-
37°C
- Handling notes
-
Restriction digests of the clone gave the following sizes (in kb): BamHI ? 6.1; AvaI ? 3.1, 1.9, 1.3; PstI ? 5.0, 1.2.
History
- Depositors
- L Guzman, J Beckwith
- Special collection
-
NCRR Contract
Legal disclaimers
- Intended use
- This product is intended for laboratory research use only. It is not intended for any animal or human therapeutic use, any human or animal consumption, or any diagnostic use.
- Warranty
-
The product is provided 'AS IS' and the viability of ATCC® products is warranted for 30 days from the date of shipment, provided that the customer has stored and handled the product according to the information included on the product information sheet, website, and Certificate of Analysis. For living cultures, ATCC lists the media formulation and reagents that have been found to be effective for the product. While other unspecified media and reagents may also produce satisfactory results, a change in the ATCC and/or depositor-recommended protocols may affect the recovery, growth, and/or function of the product. If an alternative medium formulation or reagent is used, the ATCC warranty for viability is no longer valid. Except as expressly set forth herein, no other warranties of any kind are provided, express or implied, including, but not limited to, any implied warranties of merchantability, fitness for a particular purpose, manufacture according to cGMP standards, typicality, safety, accuracy, and/or noninfringement.
- Disclaimers
-
This product is intended for laboratory research use only. It is not intended for any animal or human therapeutic use, any human or animal consumption, or any diagnostic use. Any proposed commercial use is prohibited without a license from ATCC.
While ATCC uses reasonable efforts to include accurate and up-to-date information on this product sheet, ATCC makes no warranties or representations as to its accuracy. Citations from scientific literature and patents are provided for informational purposes only. ATCC does not warrant that such information has been confirmed to be accurate or complete and the customer bears the sole responsibility of confirming the accuracy and completeness of any such information.
This product is sent on the condition that the customer is responsible for and assumes all risk and responsibility in connection with the receipt, handling, storage, disposal, and use of the ATCC product including without limitation taking all appropriate safety and handling precautions to minimize health or environmental risk. As a condition of receiving the material, the customer agrees that any activity undertaken with the ATCC product and any progeny or modifications will be conducted in compliance with all applicable laws, regulations, and guidelines. This product is provided 'AS IS' with no representations or warranties whatsoever except as expressly set forth herein and in no event shall ATCC, its parents, subsidiaries, directors, officers, agents, employees, assigns, successors, and affiliates be liable for indirect, special, incidental, or consequential damages of any kind in connection with or arising out of the customer's use of the product. While reasonable effort is made to ensure authenticity and reliability of materials on deposit, ATCC is not liable for damages arising from the misidentification or misrepresentation of such materials.
Please see the material transfer agreement (MTA) for further details regarding the use of this product. The MTA is available at www.atcc.org.
Images
Frequently Asked Questions
References
Curated Citations
Guzman LM, et al. Tight regulation, modulation, and high-level expression by vectors containing the arabinose PBAD promoter. J. Bacteriol. 177: 4121-4130, 1995. PubMed: 7608087
